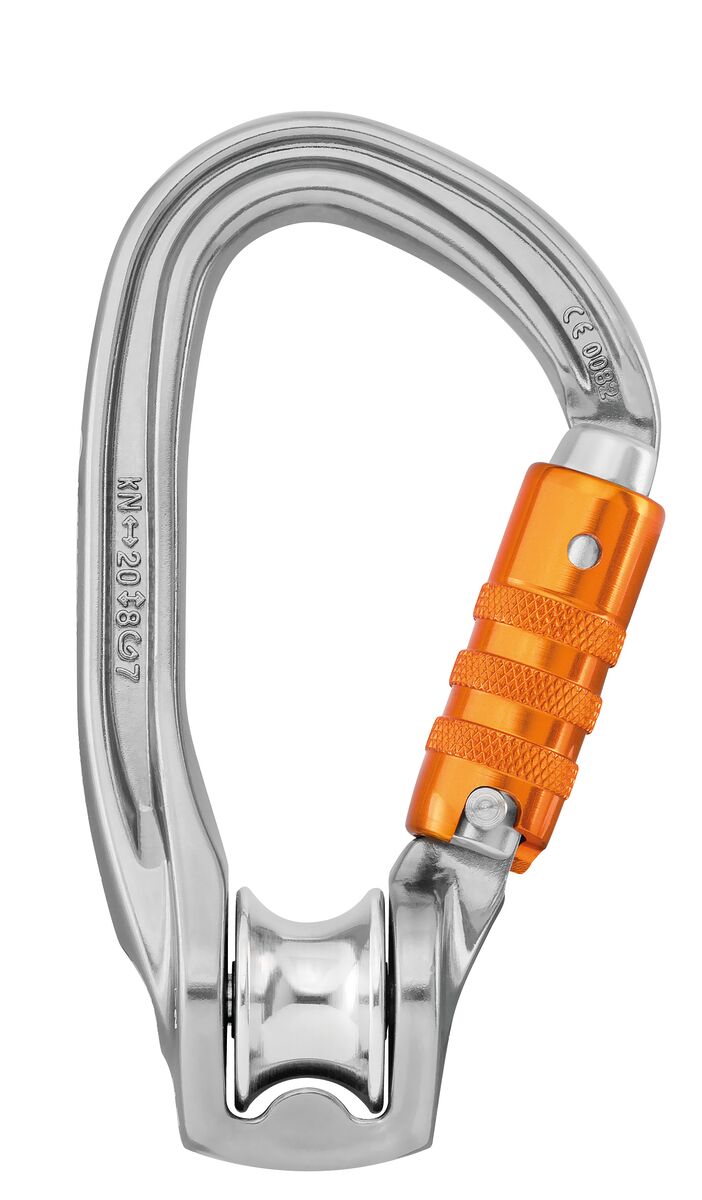

Petzl RollClip Z

Petzl ROLLCLIP Z Pulley-Carabiner

A pulley-carabiner designed for easier installation on anchors and devices.

Overview

The Petzl ROLLCLIP Z combines a pulley and locking carabiner in one compact piece of equipment. Its gate opens on the side opposite the pulley, making it easier to install on anchors and devices. Choose between automatic TRIACT-LOCK and manual SCREW-LOCK versions.

Key Features & Benefits

• Smooth pulley operation: The sheave runs on sealed ball bearings and offers 85% efficiency.
• Easier installation: The gate opens on the non-pulley side for access to anchors and devices.
• Reduced snagging: The Keylock design helps prevent the carabiner from catching during installation.
• H-shaped carabiner: Provides a favorable strength-to-weight ratio and helps protect markings from abrasion.

Available Locking Systems

• TRIACT-LOCK (P75 TL): Automatic locking with a triple-action gate. Weighs 110 g and has a 20 mm gate opening.
• SCREW-LOCK (P75 SL): Manual screw-lock with a red band that provides a visual warning when unlocked. Weighs 105 g and has a 21 mm gate opening.

Technical Specifications

• Material: Aluminum
• Compatible rope diameter: 7–13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 × 2 = 4 kN
• Efficiency: 85%
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN
• Certifications: CE EN 362, EN 12278, EAC
• Manufacturer guarantee: 3 years

Need Help Choosing?

Have a question about the ROLLCLIP Z or which locking system fits your setup? Contact Detroit Sponge & Chamois Co. at 1-800-535-6394. Our team is happy to help.

For professional use. Read and follow Petzl’s instructions for installation, inspection, and use.
