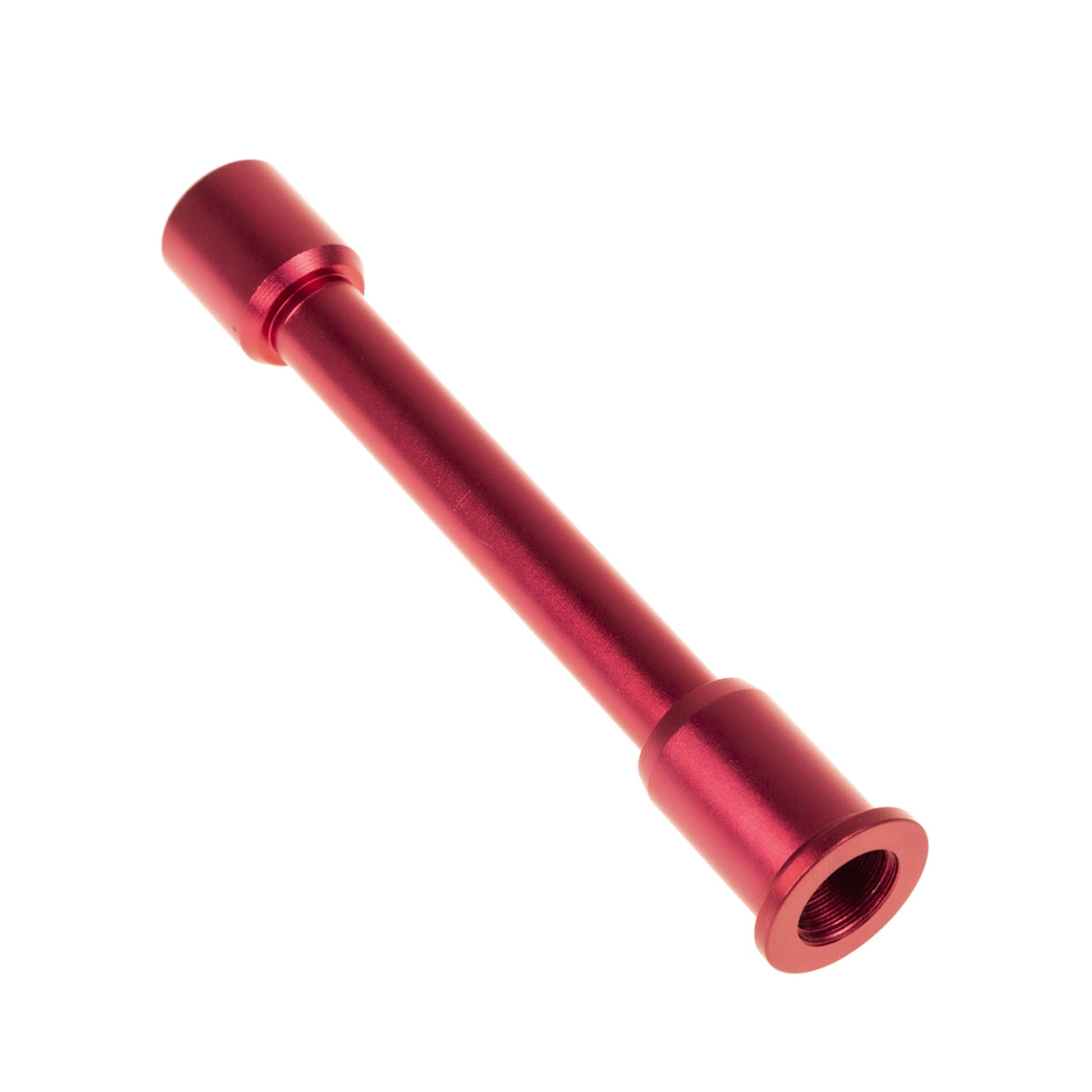

Gardiner Softwash and Powerwash Pole Adapter

• Alloy Adapter to fit the #2 section on a Gardiner pole to allow the fitting of pressure washing and soft washing fittings and attachments
• 1/4" BSP Female top screw thread -- allows Gardiners High Pressure Hose Pack male thread to be fitted
• 3/8" BSP Female base thread
• Please note that this adapter should only be used in an open-flow set up - nothing should be fitted above this fitting that can shut the water flow off

Fitting instructions for Powerwash Pole Adapter

• Remove the #1 section from a Gardiner pole of the needed length
• Slide your high pressure power wash hose with 1/4" Male BSP thread end up the pole and out of the #2 clamp at the top
• Connect the hose end fitting to the base thread on the adapter (recommended to use PTFE tape)
• Push the adapter back in to the #2 clamp and close the clamp lever to hold it in place
• Now screw in the powerwash head attachment with suitable 3/8" male thread connection
• Extend pole to desired height and start pressure or soft washing
